What PSU Do You Need for an RTX 50-Series GPU?

High-end RTX 50-series cards draw their power through a single 16-pin connector called 12V-2x6. It's a revised version of the 12VHPWR connector that made headlines on the RTX 40-series when improperly seated plugs overheated and, in rare cases, melted. The revision shortened the sensing pins so the card can detect a partially inserted plug and refuse to draw full power — addressing the main real-world failure mode.

• 12V-2x6 is physically compatible with 12VHPWR cables — same plug shape, safer sensing behavior.
• The classic failure was user error: a plug that looked seated but wasn't. The revised design makes that far harder to get wrong.
• Push the connector in until it clicks and the latch is fully engaged, with no visible gap between plug and socket.
• Avoid sharp cable bends right at the connector — leave a few centimeters of straight cable before any bend.

Modern GPUs don't draw power smoothly. They spike — for milliseconds at a time, a card can briefly pull far more than its rated power. These transients are normal, but an older PSU can interpret a big spike as a fault and shut the system down, which is why some perfectly adequate-on-paper units cause black screens under gaming load.

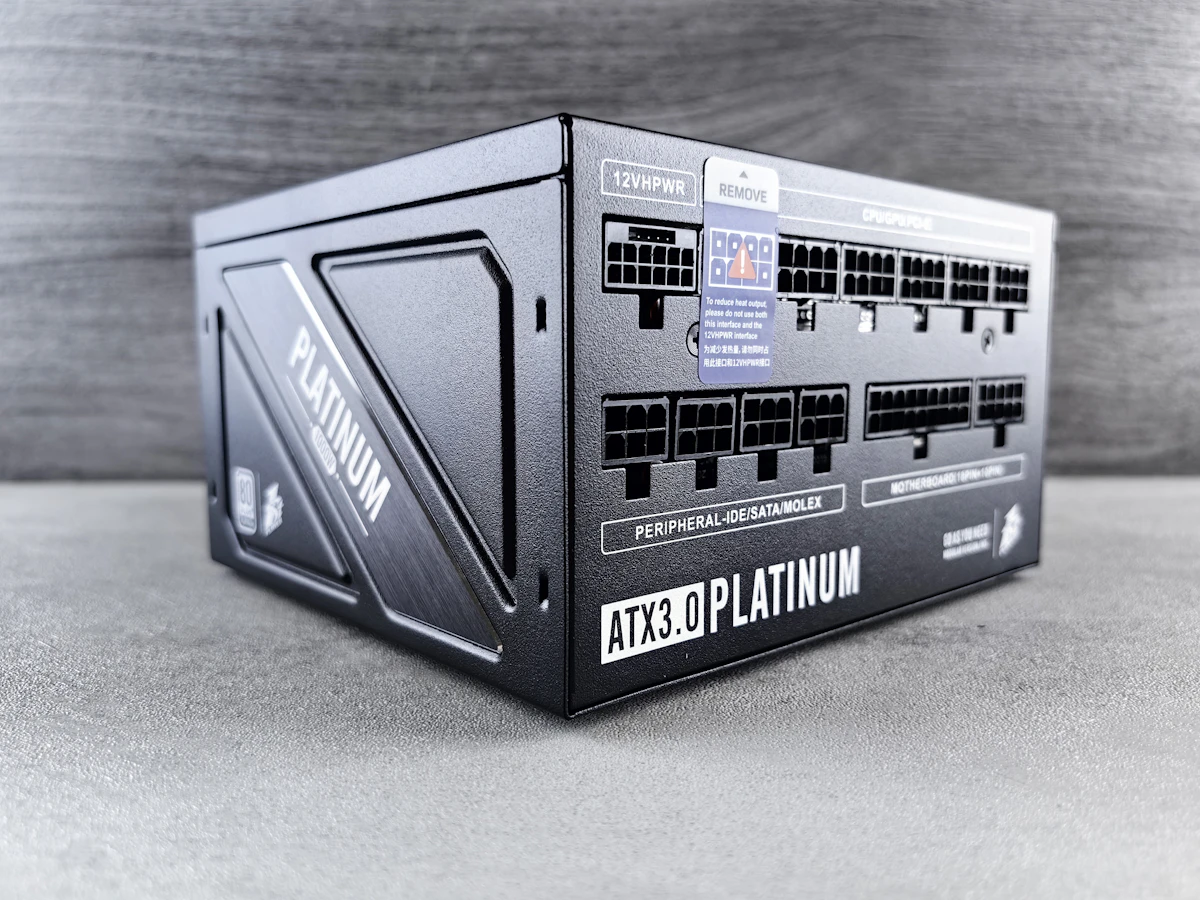

ATX 3.0 and the newer ATX 3.1 are specs designed around exactly this behavior: compliant units are built to ride out large transient spikes without tripping, and they include the native 16-pin GPU connector so you don't need adapters. That's the whole story — no exotic technology, just a PSU designed for how modern GPUs actually behave.

Treat the numbers below as practical guidance for typical single-GPU builds, not lab data — and always check the card maker's official PSU recommendation for your specific model, since factory-overclocked versions can ask for more.

• RTX 5060/5060 Ti class: a quality 550-650W unit is comfortable; a good 750W adds easy headroom.
• RTX 5070 and 5070 Ti class: a quality 750W unit covers most builds at this tier with room to spare.
• RTX 5080 class: step up to 850W or more for comfortable headroom.
• RTX 5090 class: 1000W is the sensible baseline, especially with a high-end CPU alongside it.
• Add margin if you run a flagship CPU at high power limits, heavy overclocks, or many drives and accessories.

If your PSU is ATX 3.0/3.1, use the native 16-pin cable that came with it — one clean cable from PSU to GPU, no adapters, nothing to get wrong. If you're keeping an older quality PSU, the card ships with an adapter that converts standard 8-pin PCIe cables to the 16-pin plug, and used correctly it's safe.

• Native 16-pin cable: the best option — fewest junctions, cleanest routing, designed for the load.
• Included adapter: fine, but every 8-pin feeding it must be its own separate cable from the PSU.
• Never daisy-chain: using one PSU cable's two pigtail ends to feed the adapter is the classic dangerous shortcut — it pushes double the intended current through one cable.
• Skip cheap third-party 16-pin cables from marketplaces. Use the PSU maker's own cable or the card's included adapter, nothing else.

Not every 50-series upgrade needs a new PSU, and buying one "just in case" is money that could go toward a better GPU tier. Your current unit is likely fine if it checks these boxes.

• It meets the wattage guidance for your target card tier with some margin.
• It's a quality unit from a reputable brand — 80+ Gold or better is a good proxy — rather than the anonymous unit that came with a budget prebuilt case.
• It's under roughly 7-8 years old. Capacitors age, and a decade-old unit no longer delivers its label rating with the same stability.
• It has enough separate PCIe cables to feed the adapter properly, one cable per 8-pin input.
• Your system is currently stable under heavy gaming load with no crashes or shutdowns.

A good example: a quality 750W Gold unit from a few years ago will happily run an RTX 5070 with the included adapter. Where it stops making sense is at the 5080/5090 tier, where you'd be at the wattage limit and missing the native connector — at that point a new ATX 3.1 unit is the cleaner choice.

A well-built 750W unit from a reputable maker is a better foundation than a no-name 1000W unit, full stop. Wattage is just a number on the box; what protects your components is build quality — good capacitors, honest ratings, real protection circuits, and a design that handles transients gracefully.

• Look for 80+ Gold or better efficiency from an established brand (Corsair, Seasonic, be quiet!, and similar).
• A 7-10 year warranty is the manufacturer telling you how long they expect the unit to last. Take the hint.
• Independent PSU reviews that test transient response are worth five minutes of reading before you buy.
• Fully modular is a comfort feature, not a safety one — but it does make clean 16-pin routing easier.

If you've already installed the card, your system will tell you when the PSU isn't keeping up. The symptoms are distinctive because they appear under load and vanish at idle.

• Sudden black screens or hard restarts mid-game while the desktop is perfectly stable — the classic transient-trip signature.
• Crashes that appear specifically in the most demanding scenes or when uncapping the frame rate.
• Coil whine or a PSU fan that ramps to a roar under load can indicate a unit running near its limit (annoying rather than dangerous, but telling).
• A quick test: cap your frame rate or lower the GPU's power limit. If instability disappears, power delivery is your prime suspect.
• Any burning smell or a discolored connector means shut down now and inspect before powering on again.

For the broader questions — how to safely test a PSU, how long they last, and what the protection circuits do — our general PSU upgrade and safety guide covers the fundamentals in depth.
